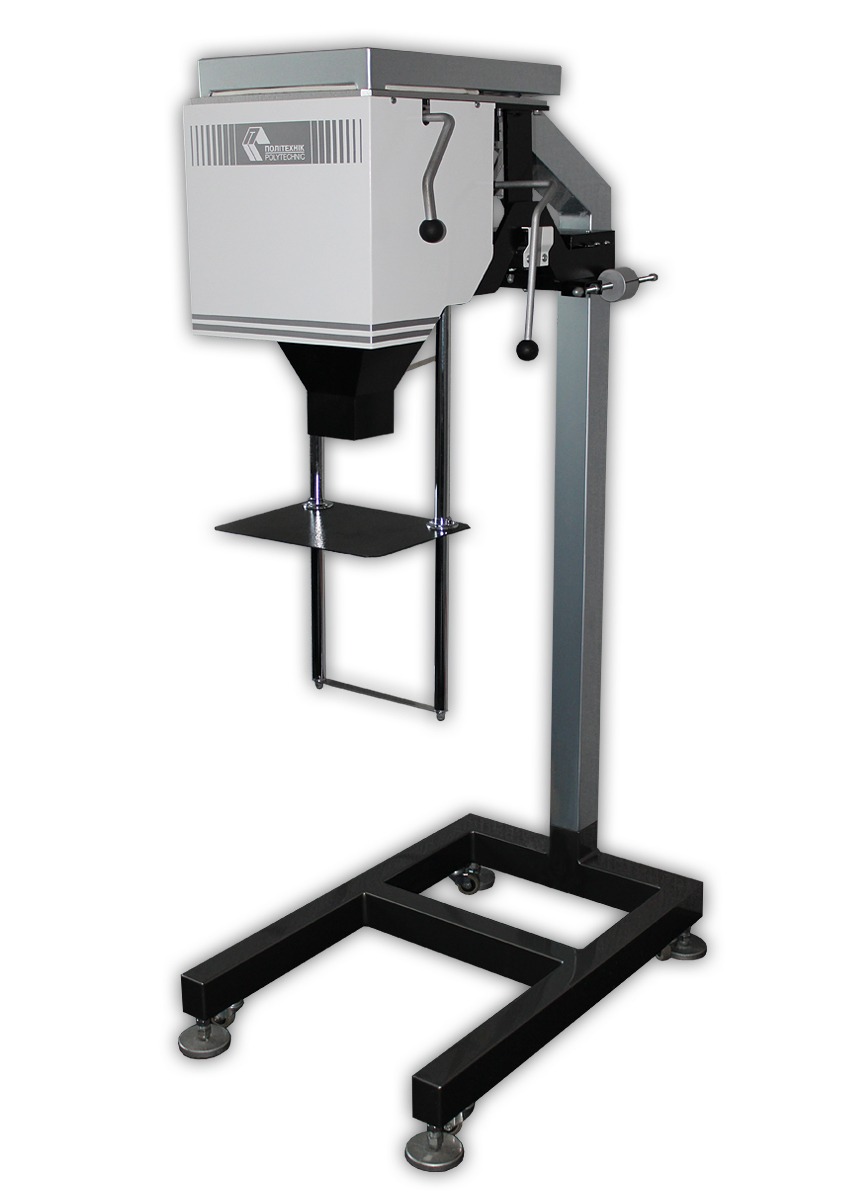

SEMIAUTOMATIC GROSS WEIGH SCALE DVSV-S

The Gross Weigh Scale DVSV-S is used for packing bulk products in packages, pails, boxes and open-mouth sacks from 0,2 kg up to 10 kg.

The Gross Weigh Scale DVSV is a mechanical lever type and does not use electrical energy or compressed air.

Specifications:

The main types of products: sugar, seeds, groats, animal feed, grain coffee, salt, cereals, mineral fertilizers, washing powders, fuel granules (pellets), dry construction mixtures, plastic granules, etc.

Min. Weight, kg	0,2
Max. Weight, kg	10
Discreteness, kg	0,005
Accuracy class (gost 24619)	0.1
Productivity, 1kg-sacks per hour	1000
Productivity, 10kg-sacks per hour	700

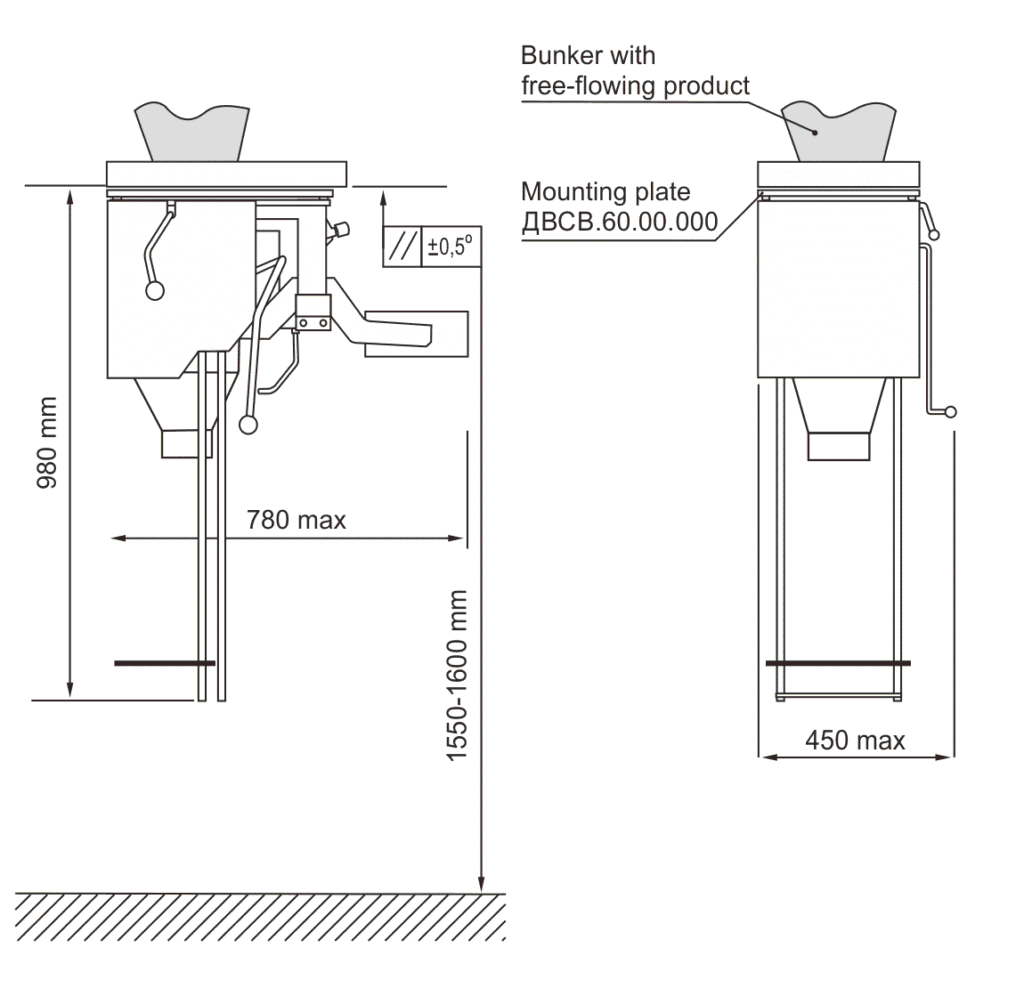

Overall dimensions, mm	800х450х980
Weight, kg	71
*The Gross Weigh Scale DVSV-S and the mounting plate, which should be welded to the funnel/silos, are included in the scope of delivery. The Gross Weigh Scale DVSV-S is screwed to the mounting plate. The construction with the funnel/silos, which is in the photo, is not included in the scope of delivery.

Terms of Use:

Ambient temperature	from – 50 °С to +50 °С
Warranty, months	12
Service life, not less, years	10

Description of the Gross Weigh Scale DVSV-S:

The principle of operation of the Gross Weigh Scale DVSV-S is based on the cyclic packaging of doses of a given weight into packets. Stages of the dosing process:

1. The operator sets the package or container on the table of the Gross Weigh Scale DVSV-S.

2. Opens the gate, thereby starting the dosing process.

3. When the specified weight is reached, the Gross Weigh Scale DVSV-S automatically stops the dosing process.

Batching per 100 g

Batching per 150 g

Batching per 500 g
