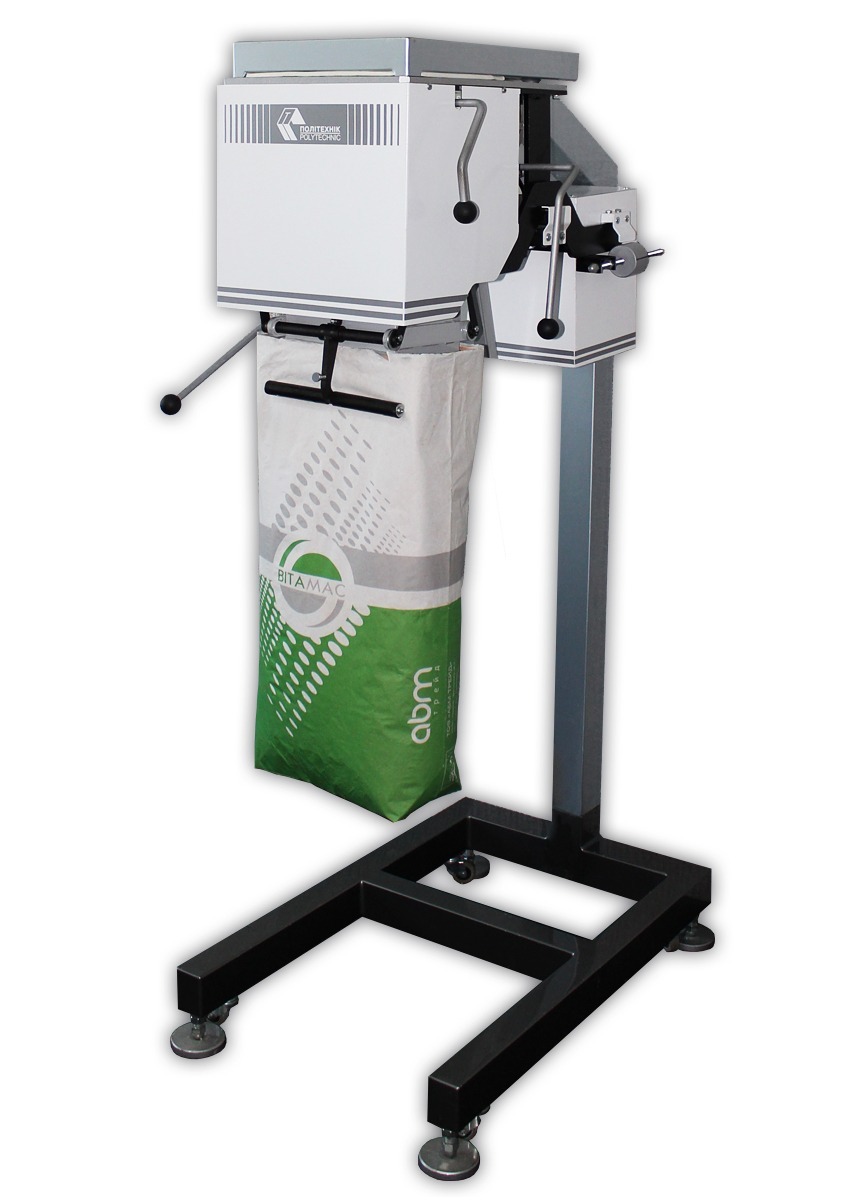

SEMIAUTOMATIC GROSS WEIGH SCALE DVSV-M
The Gross Weigh Scale DVSV-M is used for packing bulk products in packages and open-mouth sacks from 5 kg up to 70 kg.
The Gross Weigh Scale DVSV is a mechanical lever type and does not use electrical energy or compressed air.
Specifications:
The main types of products: sugar, seeds, groats, animal feed, grain coffee, salt, cereals, mineral fertilizers, washing powders, fuel granules (pellets), dry construction mixtures, plastic granules, etc.
| Min. Weight, kg | 5 |
| Max. Weight, kg | 70 |
| Discreteness, kg | 0,005 |
| Accuracy class (gost 24619) | 0.1 |
| Productivity, 50kg-sacks per hour | 400 |

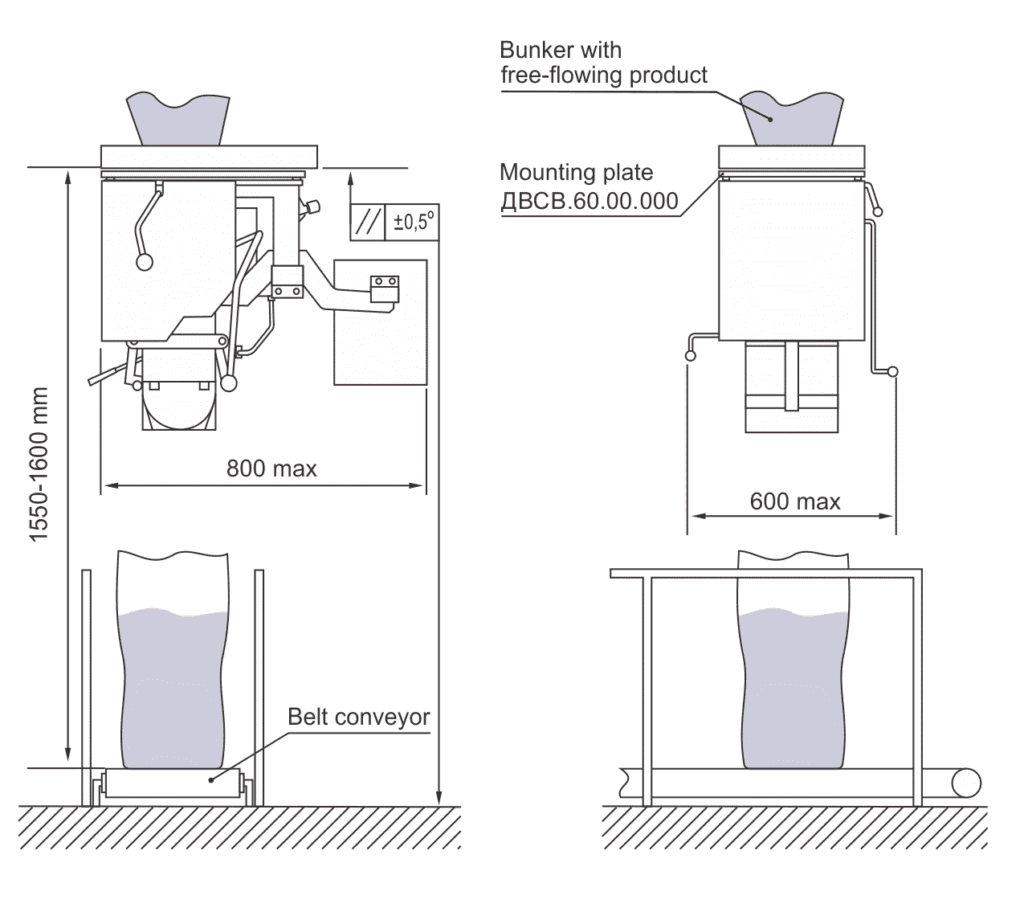

| Overall dimensions, mm | 800х600х500 |
| Weight, kg | 115 |
| *The Gross Weigh Scale and the mounting plate, which should be welded to the funnel/silos, are included in the scope of delivery. The Gross Weigh Scale is screwed to the mounting plate. The construction with the funnel/silos, which is in the photo, is not included in the scope of delivery. | |
Terms of Use:
| Ambient temperature | from – 50 °С to +50 °С |
| Warranty, months | 12 |
| Service life, not less, years | 10 |
Description of the Gross Weigh Scale DVSV-M:
The principle of operation of the Gross Weigh Scale DVSV-M is based on the cyclic packaging of doses of a given weight into open-mouth sacks. Stages of the dosing process:
- The operator puts the bag on the mouth of the Gross Weigh Scale DVSV-M.
- Opens the gate, thereby starting the dosing process.
- When the specified weight is reached, the Gross Weigh Scale DVSV-M automatically stops the dosing process.
